1c-Si Sapphire

1c-Si Sapphire Proof of Concept Completed April 4, 2013

(Click on images to Enlarge)

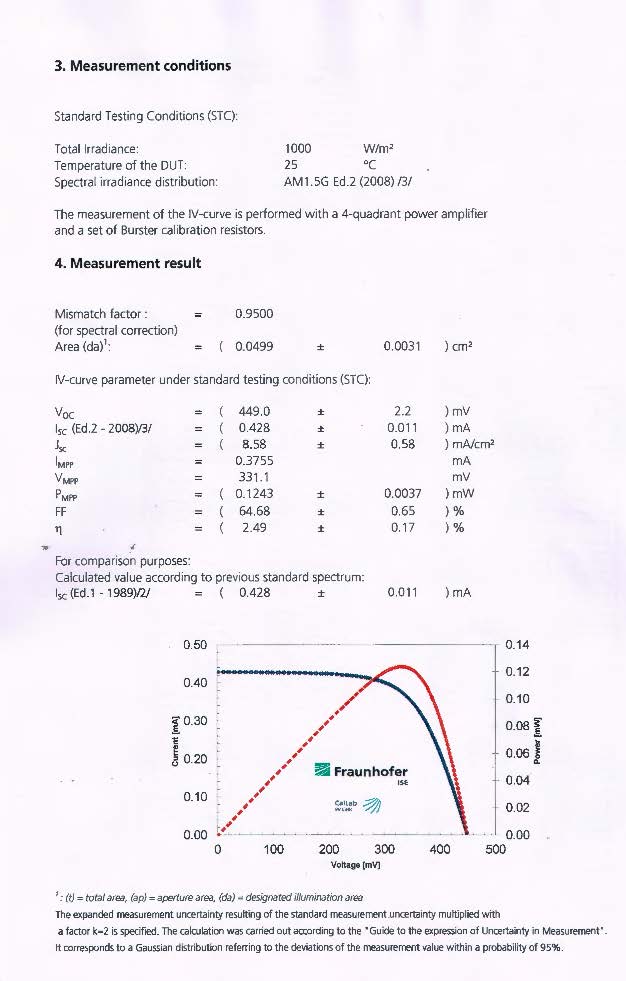

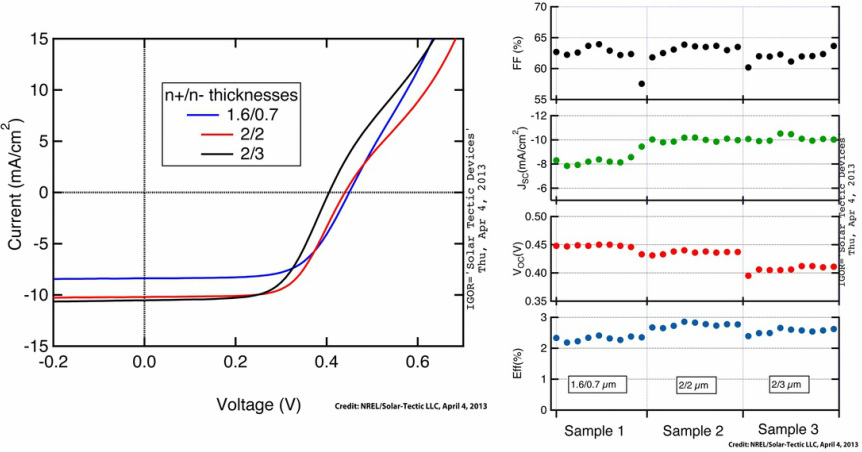

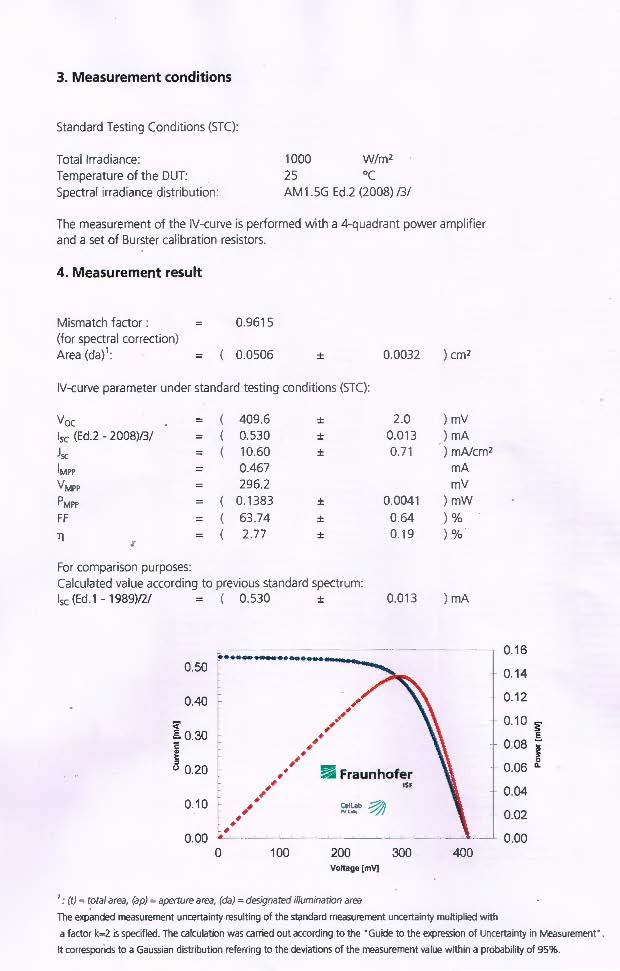

Solar-Tectic LLC 1c-SI Sapphire1c-Si Sapphire Measurement Results 3 1c-Si Sapphire Measurement Results 2 1c-Si Sapphire Measurement Results

  1. MIT Technology Review “Your next Smartphone Screen May Be Made of Sapphire”, March 20, 2013.
  2. NREL, “Heteroepitaxial film crystal silicon on Al2O3; new route to inexpensive crystal silicon photovoltaics” July 2011
  3. No light trapping was implemented, and there was partial passivation.  The Si thickness was only ~3-5 microns and much greater efficiency is expected with additional microns of Si (~20 max).
